Industrial Grade 70W UAV Counter Module
Industrial grade 70W UAV counter module covering 1.2GHz, 2.4GHz, 5.2GHz, and 5.8GHz frequency bands for security equipment integration.
Product Overview
With the rapid proliferation of civilian and industrial drones, unauthorized drone activities pose significant threats to public security, critical infrastructure, industrial parks, and confidential areas. Our Industrial Grade UAV Counter Module is specifically engineered for security equipment, covering four core frequency bands (1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz) widely used in drone remote control, image transmission, and navigation systems.
This high-performance electronic interference component employs industrial-grade design standards to deliver stable, efficient, and reliable electronic countermeasure capabilities. By emitting high-power, stable RF interference signals, the module effectively disrupts communication links between drones and their controllers, forcing unauthorized drones to lose control, return to origin, execute emergency landings, or hover in place without causing physical damage.
Technical Specifications
| Parameter |
Value |
Unit |
| Frequency |
2350-2500 |
MHz |
| Test Voltage |
28 |
V |
| Current |
6 |
A |
| Output Power |
70 |
W |
| Gain |
53 |
dB |
| Output Stability |
1 |
dB |
| Connector |
SMA/Female |
| Output Connector VSWR |
≤1.30 (No power and VNA test) |
| Power Supply |
Red+Black+Enable wire |
| Enable Control |
High ON Low Off |
| Dimensions |
220*113*21 |
mm |
| Mount Hole |
220*113 |
mm |
| Weight |
1148 |
g |
| Operating Temperature |
-40 to +65 |
℃ |
| Housing Material |
Aluminum |
| Vibration Resistance |
Car load OK |
Key Features
- Four Core Frequency Bands Full Coverage: Precisely covers 1.2GHz (1100-1300MHz), 2.4GHz (2400-2500MHz), 5.2GHz (5150-5350MHz), and 5.8GHz (5725-5850MHz) frequency ranges, fully covering mainstream drone working bands
- Industrial-Grade Stable Performance: Utilizes advanced gallium nitride (GaN) power amplifier technology and digital signal processing chips with high power density and stable signal output
- High Power & Long-Distance Interference: Maximum output power of 70W per frequency band with adjustable combined output power; omnidirectional interference radius of 800-1500m in open environments
- Strong Environmental Adaptability: High-quality aluminum alloy housing with sandblasting oxidation treatment provides excellent heat dissipation, corrosion resistance, and impact resistance

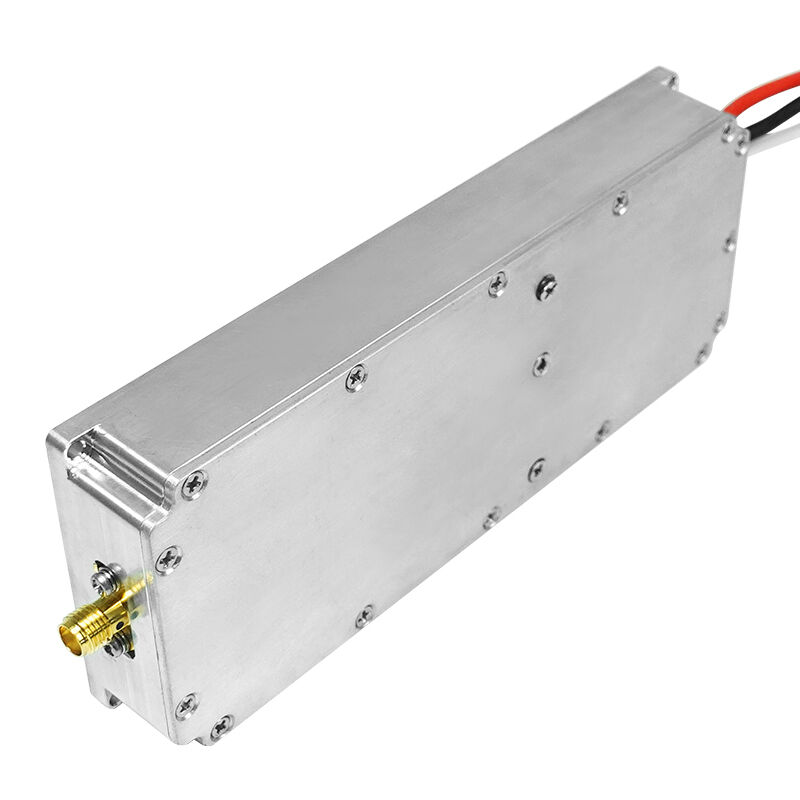

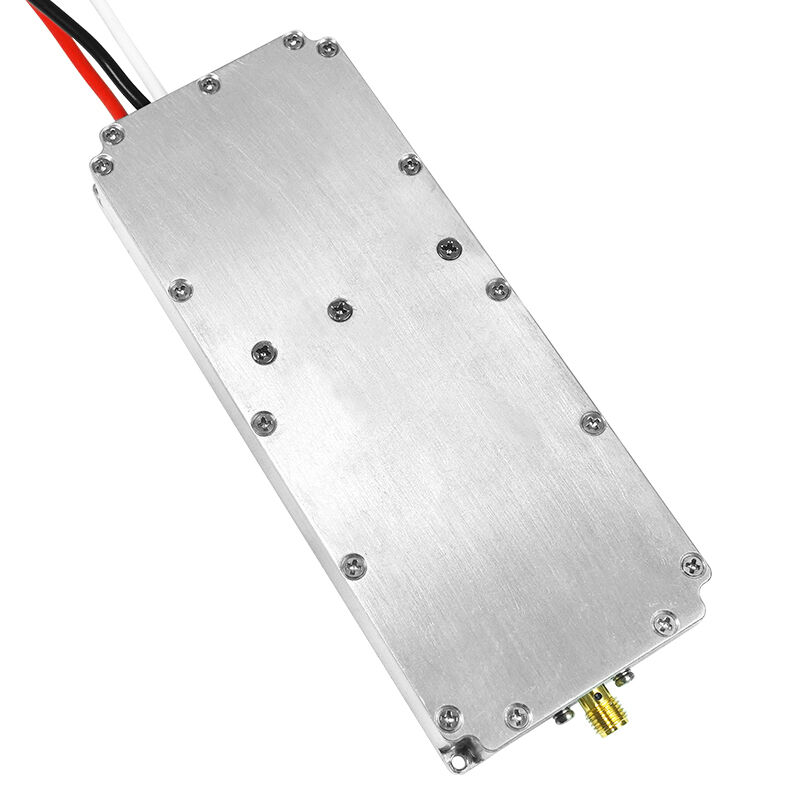

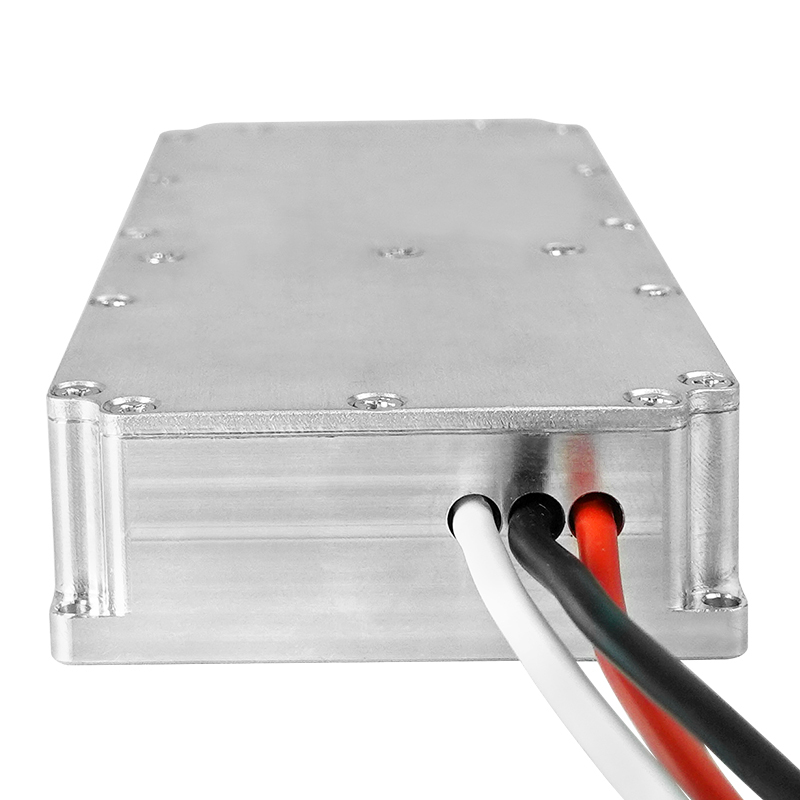

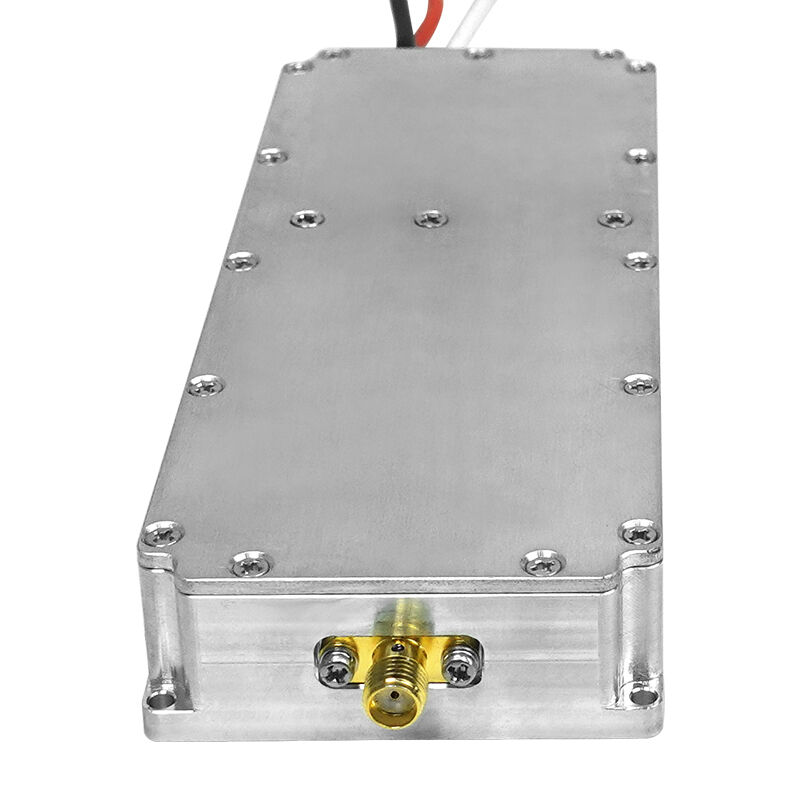

Product Images
Important Usage Notes
- Use only with matched voltage specifications
- Connect antenna before powering on the device
- Cooling system required for prolonged operation
- Optimal performance in areas with unobstructed views
Frequently Asked Questions
What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing.
What payment methods do you accept?
We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.
What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
