| Miejsce pochodzenia: | Chiny |
|---|---|
| Nazwa handlowa: | TX TELSIG |
| Orzecznictwo: | SGS,ISO9001 |
| Numer modelu: | TXC30W |
| Minimalne zamówienie: | 1 |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Trwała obudowa lub pudełko |
| Czas dostawy: | Za 2 dni robocze |
| Zasady płatności: | T/T, Paypal itp. |
| Możliwość Supply: | 100 000 pCS/miesiąc |
| Marka: | Teksyn | Pasmo częstotliwości: | 100-1000 MHz |
|---|---|---|---|
| Moc: | 30 W | Woltaż: | 28-32 V |
| Wyloty: | Na zewnątrz stop aluminium | Rozmiar: | 179*50*20mm |
| Waga: | 0,294 kg | ||
| Podkreślić: | Module jamming drone RF amplifier,100-1000mhz RF amplifier,30W VSWR protect RF amplifier |
||

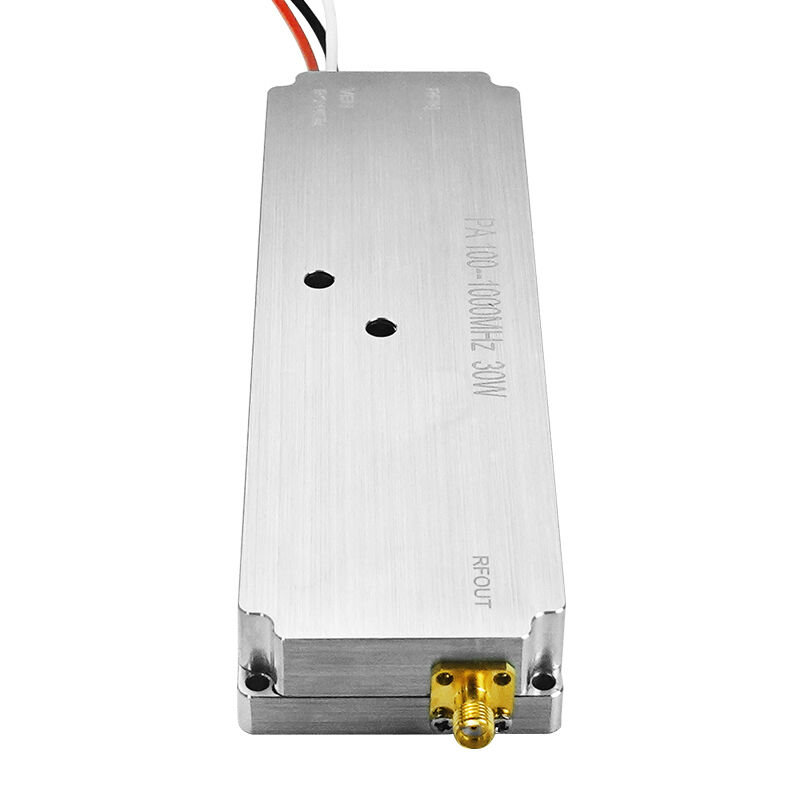

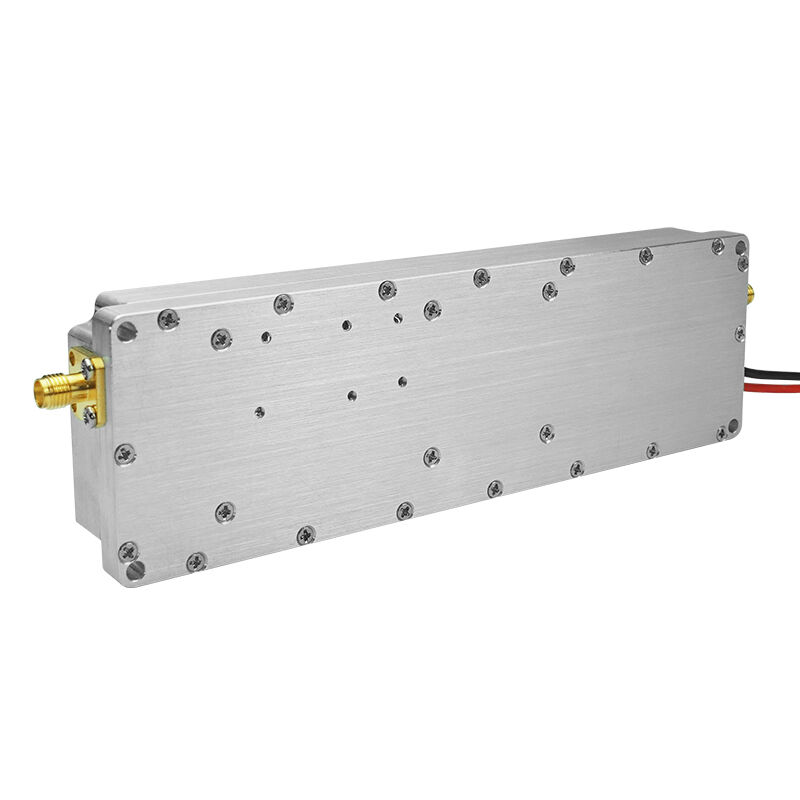

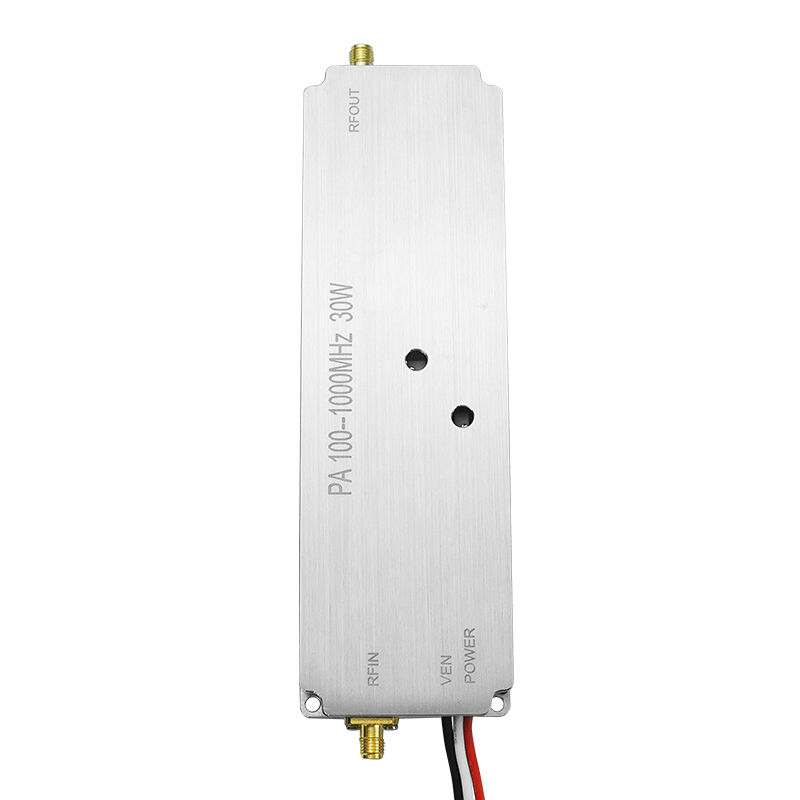

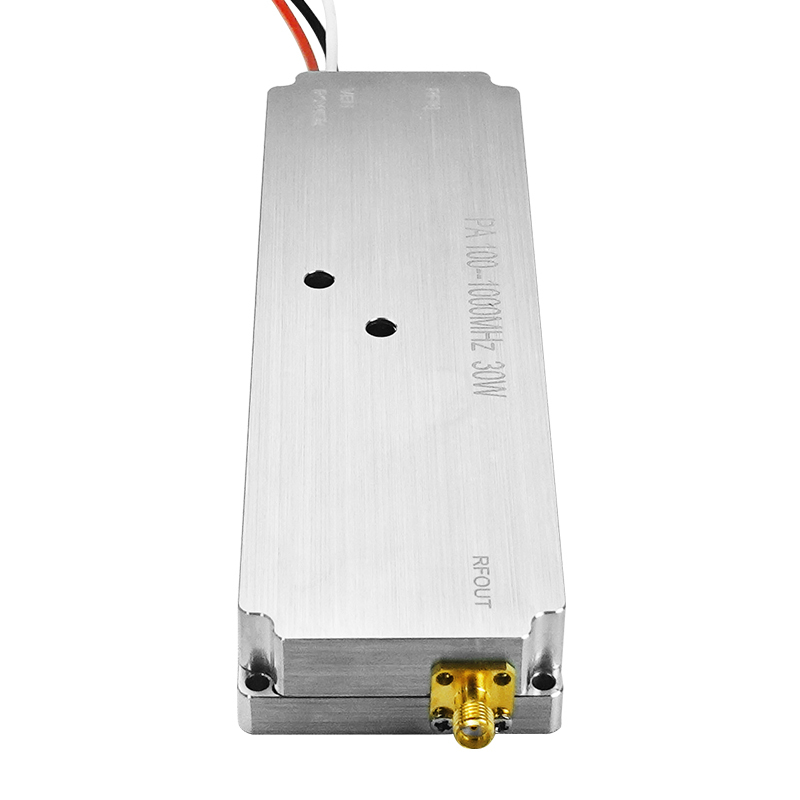

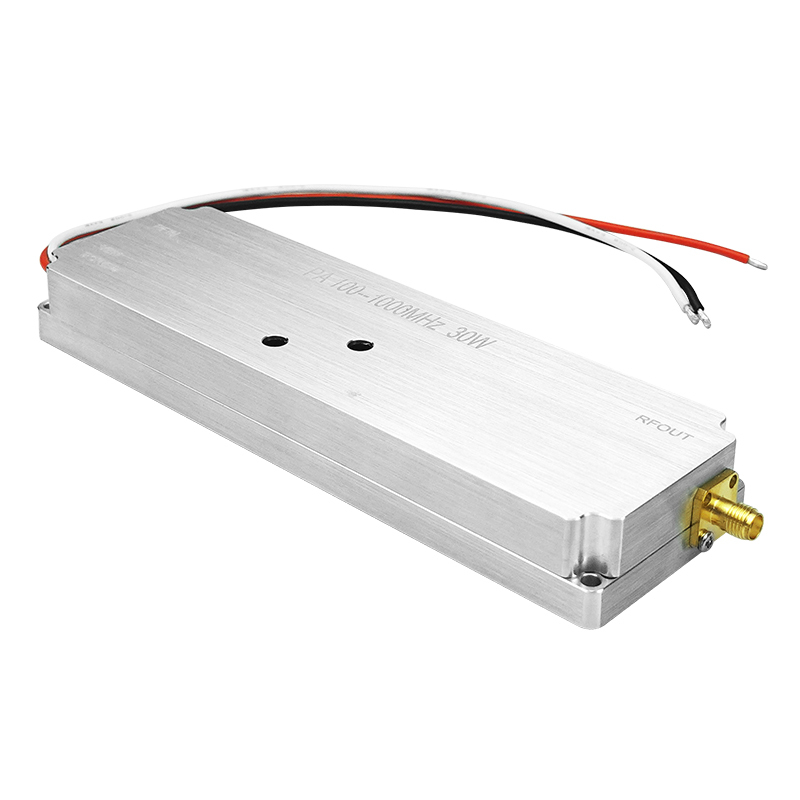

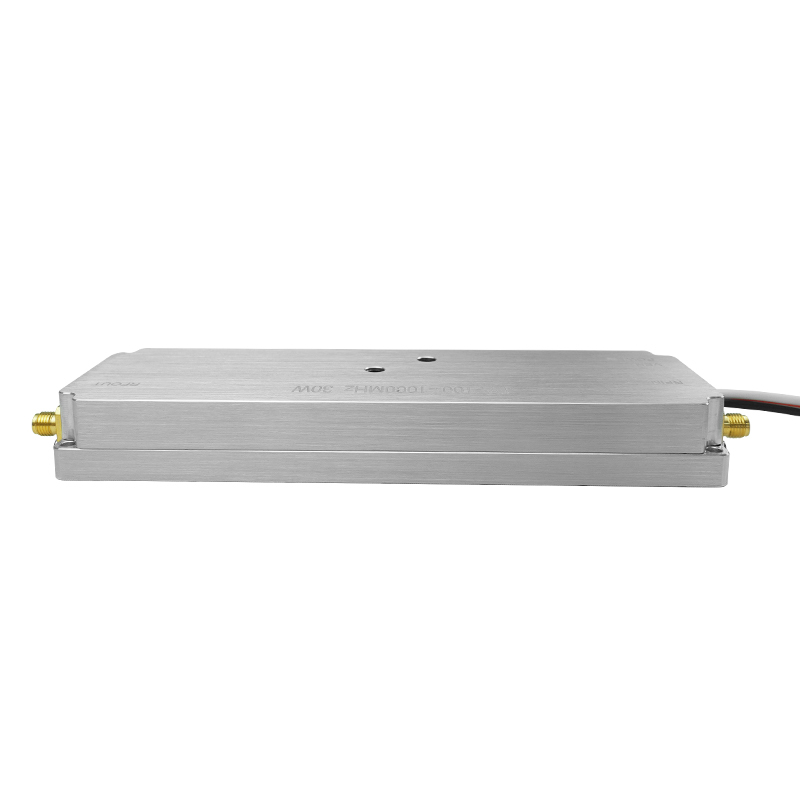

Texin 30W broadband 100-1000mhz VSWR protect RF power amplifier module jamming drone
TXC30W is special pa bisirectional power amplifiermodule , it has wide bands and dual connectors one is input signal and another is booster signal , the output 30W in total when 28V voltage and it can effectively get rid of the drone signal threat in seconds by jamming. The Jamming range is different from the real environment .and if you need multiple band like 500-1000mhz ,500-2000mhz ,wifi 2.4ghz 5.8ghz that is available , to meet your needs as much as possible.
And the30W broadband pa power amplifier module Special measures have been taken to enable the module to perform standing wave protection simultaneously during operation.Almost signals of 2G/3G/4G/Wifi/GPS,5.8GHz you can option freely. Need more? Contact us for customizing.
TXtelsig is the leading manufacturer to design and produce signal jamming and wireless coverage product with professional and experienced research and development teams. We have the strength to provide you with the most cost-effective products and plan.
Product Feature
1. 400-5800MHz Wide Frequency Range
2. 30W High Power Output
3. With Temperature Protection
4. High Gain and Low Noise
5. Compact and Durable Design
Application:
1. Conference room, Confidential office, negotiation room
2. Mobile vehicles, on-site protection of important figures in the political and business circles
3. Party and government organs, temporary meeting rooms for all kinds of small meetings of enterprises
4. Personal or commercial special needs
| No. | Item | Data | Unit | Notes |
| 1 | Frequency | 400-5800 | MHZ | |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 50 | W | |
| 4 | Work Voltage | DC28 | V | |
| 5 | Max Gain | 47 | dB | |
| 6 | Flatness | ±1 | dB | |
| 7 | Max Current | 4 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control | high low level current | V | 0V off /0.6 on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |

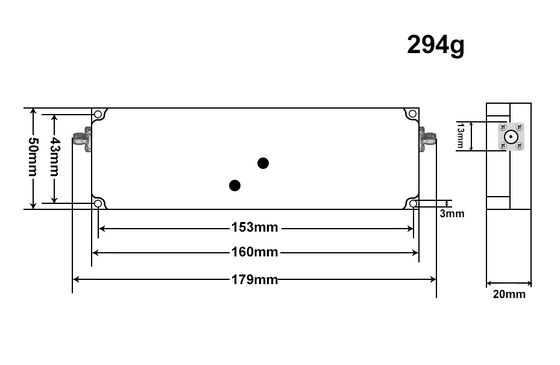

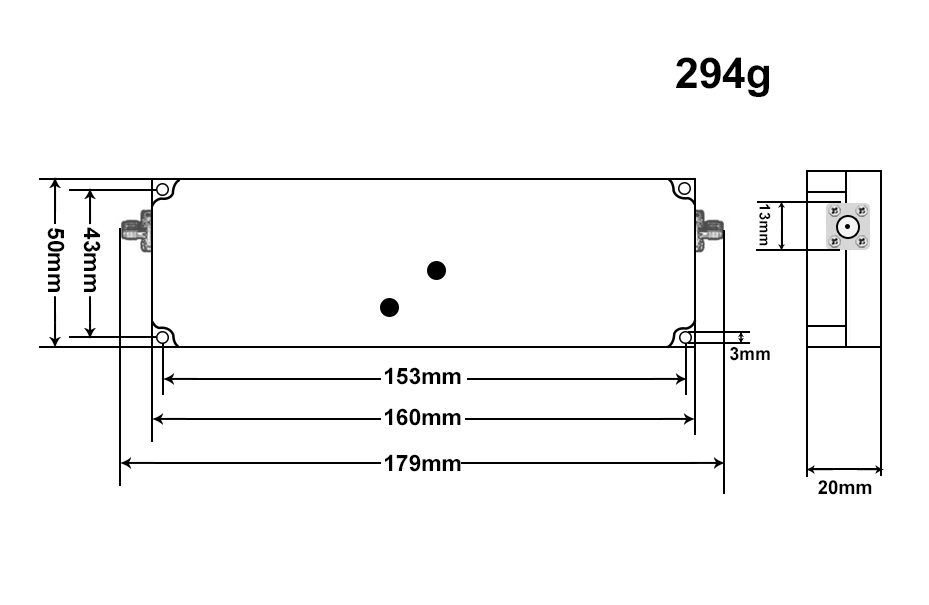

| 14 | Size | 179*50*20 | mm | |
| 15 | Weight | 0.294 | Kg |
