| Miejsce pochodzenia: | Shenzhen Chiny |
|---|---|
| Nazwa handlowa: | TeXin |
| Orzecznictwo: | CE ISO |
| Minimalne zamówienie: | 1 |
| Cena: | negocjowalne |
| Szczegóły pakowania: | trwały przypadek |
| Czas dostawy: | 5-8 dni |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Możliwość Supply: | 1000/miesiąc |
| Typ: | Antena tubowa | Maksymalna moc wejściowa: | 100W |
|---|---|---|---|
| Częstotliwość anteny: | 100-6000 MHz (dostosowane) | Wzmocnienie anteny: | 6,4–18,1 dBi |
| Polaryzacja: | Pionowy | Konektor: | N |
| Rozmiar: | 900*280*80mm | Waga: | 1,3 kg |
| Tworzywo: | Aluminium | VSWR: | ≤2,0 |
| Podkreślić: | dual ridge horn antenna for signal jammer,50W 100W ultra band antenna,aluminum 800MHz-10GHz high gain antenna |
||

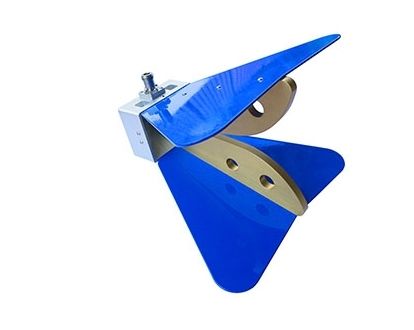

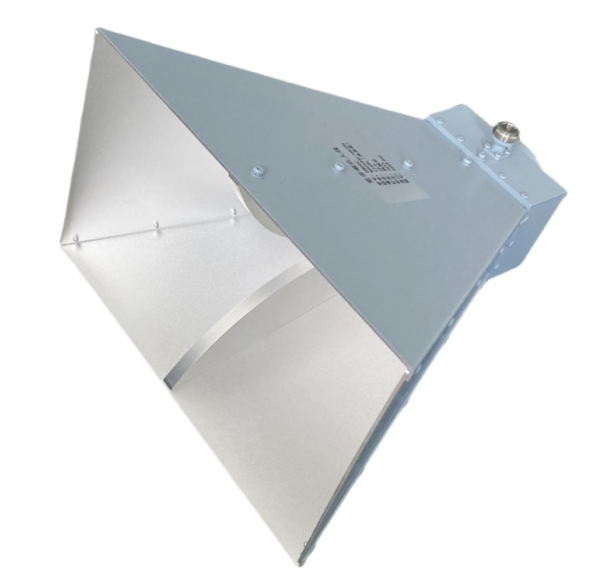

Aluminum800MHz~10GHz 2g 3g 4g 5g 50W 100W ultra band dual Ridge Horn Antenna for signal jammer
This outdoor 800MHz~10GHz frequency Horn Antenna is a directional antenna developed manufactured by Texin specifically for mobile communication base stations, drone countermeasures, and satellite communications. Its 18dBi gain significantly improves signal strength, and its internal copper and PTFE materials ensure efficient reception of RF signals.
The product has N-female RF connector , users can customize 2G, 3G, WIFI, 5.2ghz 5.8ghz according to their needs.The outer cover is waterproof and windproof and can adapt to various complex environments and outdoor installation and use.
Product specification
| Frequency (GHz) | Gain(dBi) | E-Plane(3dB) | H-Plane(3dB) |
| 0.8 | 6.44 | 101.5 | 71.1 |
| 0.9 | 6.82 | 98.0 | 67.4 |
| 1.0 | 7.19 | 93.6 | 63.3 |
| 1.5 | 9.51 | 65.5 | 53.7 |
| 2.0 | 10.8 | 44.3 | 41.1 |
| 2.5 | 10.9 | 36.6 | 51.2 |
| 3.0 | 12.1 | 42.9 | 36.3 |
| 3.5 | 12.9 | 34.4 | 30.1 |
| 4.0 | 13.6 | 27.3 | 29.4 |
| 4.5 | 13.2 | 35.8 | 29.7 |
| 5.0 | 14.6 | 28.5 | 21.8 |
| 5.5 | 14.6 | 28.8 | 22.6 |
| 6.0 | 14.5 | 38.9 | 24.1 |
| 6.5 | 14.4 | 42.8 | 21.6 |
| 7.0 | 14.1 | 41.2 | 26.6 |
| 7.5 | 14.7 | 38.3 | 22.9 |
| 8.0 | 14.4 | 36.5 | 26.3 |
| 8.5 | 14.8 | 34.9 | 26.7 |
| 9.0 | 15.8 | 27.7 | 23.5 |
| 9.5 | 17.3 | 20.2 | 19.0 |
| 10.0 | 18.1 | 18.3 | 15.5 |
Product Feature
